Digitech Whammy 5 Polyphonic Pitch Shifter Pedal
Digitech Whammy 5 Polyphonic Pitch Shifter Pedal
Digitech Whammy 5 Polyphonic Pitch Shifter Pedal
Digitech Whammy 5 Polyphonic Pitch Shifter Pedal

Digitech Whammy 5 Polyphonic Pitch Shifter Pedal

Regular price£199.00
/
Tax included. Shipping calculated at checkout.

  • Supporting Local Tree Planting
  • In stock, ready to ship
  • Inventory on the way

DigiTech has introduced the next-generation Whammy pedal. The latest version delivers the Whammy sound that guitarists have become familiar with over the last 20 years, with the addition of chordal Whammy pitch-shifting, extra Whammy intervals and true bypass. The Whammy lets guitar and bass players raise and lower their tuning by up to two octaves, to create pitch shifts from subtle to extreme and dramatic musical effects not possible with any other pedal. The unit now incorporates new pitch-shifting technologies that enable the player to bend entire chords up or down while keeping all the notes in the chord perfectly in tune. It also keeps its signature Classic single-note mode, along with nine Harmony 2-note interval settings and two Detune modes.

Offering true bypass means that the signal from the guitar is completely unaffected by the Whammy when it’s switched off, maintaining all the purity of the guitar signal when the player doesn’t want anything altering their sound. This can be especially important when using a lot of pedals on a pedalboard. It also includes 1/4-inch inputs and outputs, a MIDI input that allows control of the pedal from an external MIDI device and a nine-Volt DC power input. The Whammy employs high-quality 24-bit/96kHz analog-to-digital and digital-to analog converters for clean, smooth pitch-bending sound.

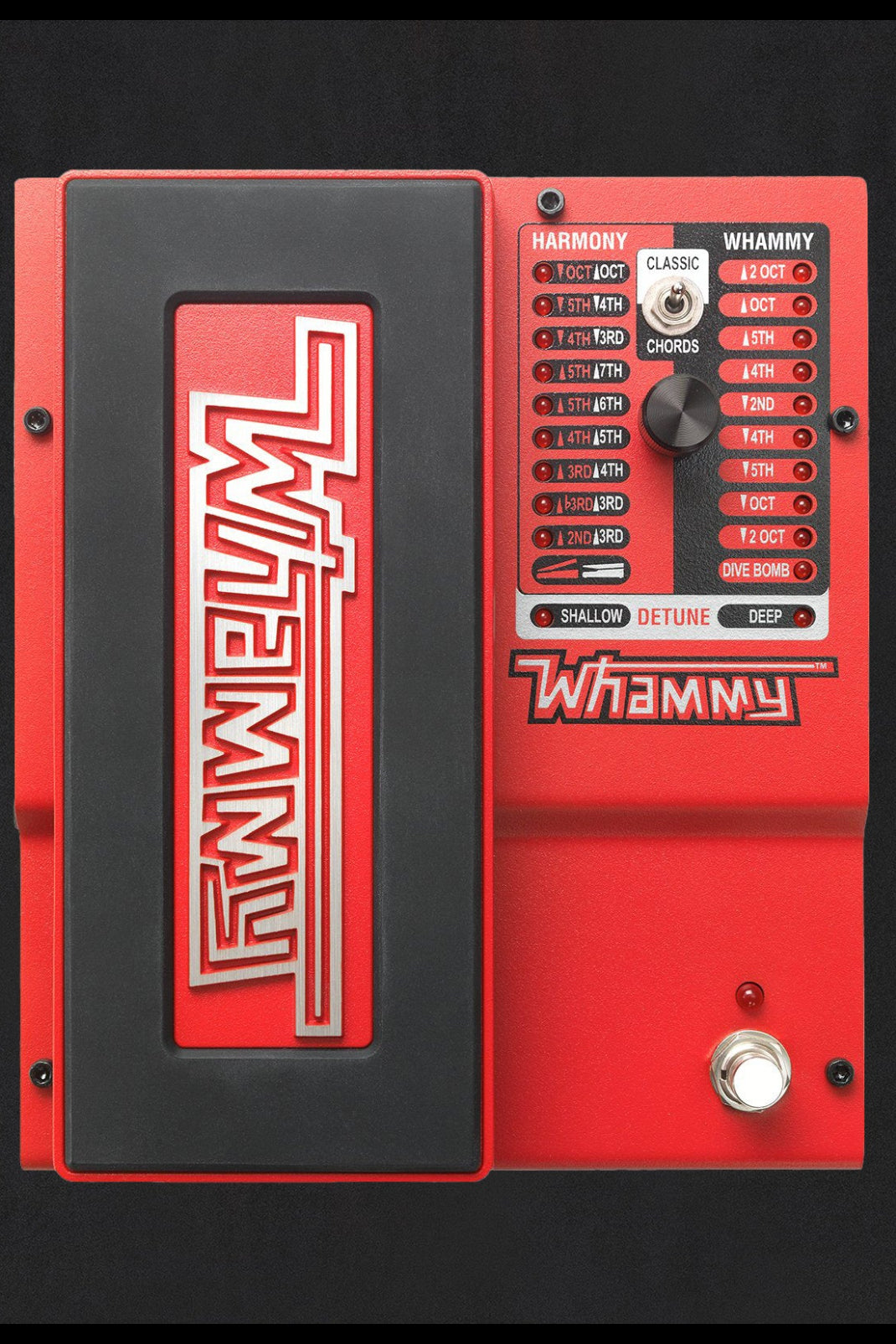

An on/off switch engages and disengages the Whammy effect and a Classic/Chords switch lets players select either mode. The Whammy is built to withstand the rigours of the road, with a rugged all-metal chassis, pedal and footswitch.



General Specifications

  • Sample Rate44.1 kHz
  • Frequency Response20 Hz to 20 kHz
  • Signal to Noise Ratio> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
  • THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
  • A/D Conversion24 bit
  • D/A Conversion24 bit
  • Power Consumption2.4 Watts (< 265 mA @ 9 VDC)
  • Power Adapter9 VDC External Adapter

Dimensions

  • Height2.5"
  • Width6.5"
  • Depth7.75"

Audio Output

  • Output Type1/4” Unbalanced TS
  • Max Output Level+10 dBu
  • Output Impedance1 kΩ

Audio Input

  • Instrument Input Type1/4” Unbalanced TS
  • Max Input Level+5 dBu
  • Input Impedance1 MΩ
  • MIDI Input5-Pin Din
