NU-X Pulse Mini IR Loader Pedal (NSS-4)
NU-X Pulse Mini IR Loader Pedal (NSS-4) is backordered and will ship as soon as it is back in stock.
Description
Description
The NU-X Pulse (NSS-4) is a compact mini IR loader pedal with 24 built-in cabinet impulse responses across three modes — electric guitar cabs, bass cabs, and acoustic guitar IRs. Switch between modes using the tap switch. Stereo input and output are supported via 1/4" TRS. A 3.5mm headphone output enables silent practice, and USB connectivity allows direct recording into a DAW as an audio interface.
EG CAB – Electric Guitar Cabinets (8 IRs)
JZ120 (Roland Jazz Chorus 120), DR112 (Fender Deluxe Reverb), BS410 (Fender Bassman 410), A212 (VOX AC30 212), TR212 (Fender Twin Reverb 212), 1960 (Marshall 1960A 412), GB412 (Celestion Greenback 412), V412 (Celestion Vintage 30 412).
BS CAB – Bass Cabinets (8 IRs)
AGL DB810 (Aguilar DB 810), AMP SV810 (Ampeg SV810), MKB 410 (Markbass 410), TRC 410 (Trace Elliot 410), AMP SV410 (Ampeg SV410 + Tweeter), Bassguy 410 (Fender Bassman 410), Eden 410 (Eden 410), AMP SV212 (Ampeg SV212).
AG IR – Acoustic Guitar IRs (8 IRs)
Gibson Hummingbird (magnetic PU & piezo), Gibson J15 (magnetic PU & piezo), Martin D45 (magnetic PU & piezo), Martin HD28 (piezo), Taylor 814 (piezo) — covering both electric guitar magnetic pickups and acoustic piezo under-saddle pickups.
Bypass: Switchable between true bypass and buffered bypass with trails. Hold the footswitch while powering on (without USB connected) to toggle. LED indicates mode: Green = Buffered, Red = True Bypass.
- 24 built-in IRs: 8 electric guitar cabs, 8 bass cabs, 8 acoustic guitar IRs
- Stereo input & output (1/4" TRS)
- 3.5mm headphone output for silent practice
- USB audio interface for direct DAW recording
- Switchable true bypass or buffered bypass with trails
- 48kHz / 24-bit processing, 103dB dynamic range
- Requires 9V DC, negative tip, 100mA (not included)
Our Thoughts
Our Thoughts
Specs
Specs
- Input Impedance：1MΩ
- Output Impedance：10kΩ
- Dynamic Range: 103 dB
- DSP Processing: 48KHz / 32-bit
- A/D D/A Sampling Rate: 48KHz / 24-bit

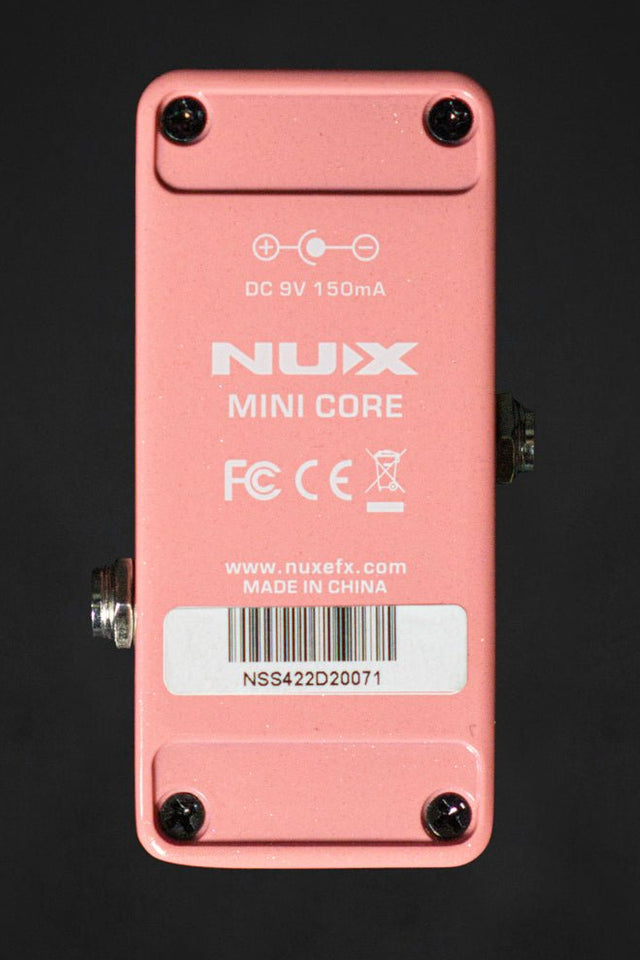

- Power：9V DC(Negative tip, Optional ACD-006A adapter)
- Current Draw：less than 100mA
- Dimensions：94(L)X51(W)X53(H)mm
- Weight：175g
