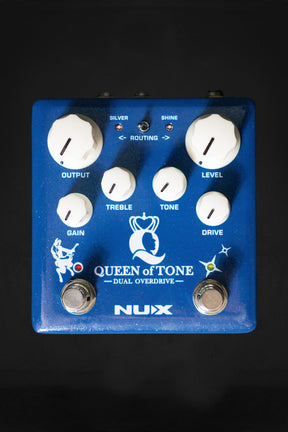

NU-X Queen of Tone Dual Overdrive Pedal – Horseman & Morning Star

The NU-X Queen of Tone is a dual-footswitch overdrive pedal combining two legendary-inspired circuits in a single unit, with switchable routing and advanced bypass options.

Horseman (left) – Centaur-Inspired
Based on the legendary Klon Centaur circuit, with Output, Treble, and Gain controls. Hold the footswitch to toggle between two modes: Gold (transparent overdrive mirroring the classic Gold Centaur character) and Silver (a powered-up version with extended gain range, equivalent to the Silver Centaur). The Silver mode delivers the high headroom typically associated with 18V operation from a standard 9V supply.

Morning Star (right) – Bluesbreaker-Inspired
Based on the legendary Bluesbreaker circuit — a transparent, low-gain drive with a natural, open character. Hold the footswitch to engage Shine mode, which adds a crystal-clear treble boost for added cut and presence.

Routing & Switching
A toggle switch on the front selects the signal order between the two overdrives: Morning Star into Horseman (MS→HM) or Horseman into Morning Star (HM→MS). Rear-panel switches handle bypass mode (Buffered or True Bypass) and IFS (Input FET Stage), which boosts the input signal to push a tube amplifier harder into natural breakup.

• Horseman: Centaur-inspired, Gold & Silver modes
• Morning Star: Bluesbreaker-inspired, Shine mode (treble boost)
• Switchable routing: MS→HM or HM→MS
• IFS (Input FET Stage) for driving tube amps harder
• Switchable true or buffered bypass
• Requires 9V DC, negative tip (not included)

Features

• 2 classic overdrive circuits in one compact enclosure
• Versatile modes and routing design to enhance the tone variety
• IFS: INPUT FET STAGE design to drive the amp’s breakthrough edge

General Specs

• Input Impedance：2.2MΩ
• Output Impedance：1kΩ
• Power: 9V DC(Negative tip, Optional ACD-006A adapter)
• Current Draw：>100mA (52mA)
• Dimensions: 105(L)X115(W)X58(H)mm
• Weight: 440g
