NU-X Optima Air NAI-5 Acoustic Guitar Simulator Pedal

Regular price£149.00
/
Tax included. Shipping calculated at checkout.

  • In stock, ready to ship
  • Inventory on the way

NUX Optima Air is a dual-switch acoustic guitar simulator with a preamp for acoustic and electric guitar players. It simulates the acoustic guitar profiles with the best-optimized sound depending on your guitar and pickup type.

IR loader combined with a preamp which is equipped with 3-band EQ and Gain controls. And there is an additional one-knob-control Reverb effect. If you want to connect any effect pedal you can use the SEND/RETURN effect loop and add the Optima Air into the signal chain.

NUX Optima Air has a unique profile capture function, you can create your own acoustic guitar profile (IR file) by capturing your favorite acoustic guitar's sound.

There is an XLR DI output for direct line/mixer connection, headphones output for silent play and auxiliary input to connect a music player to play along.

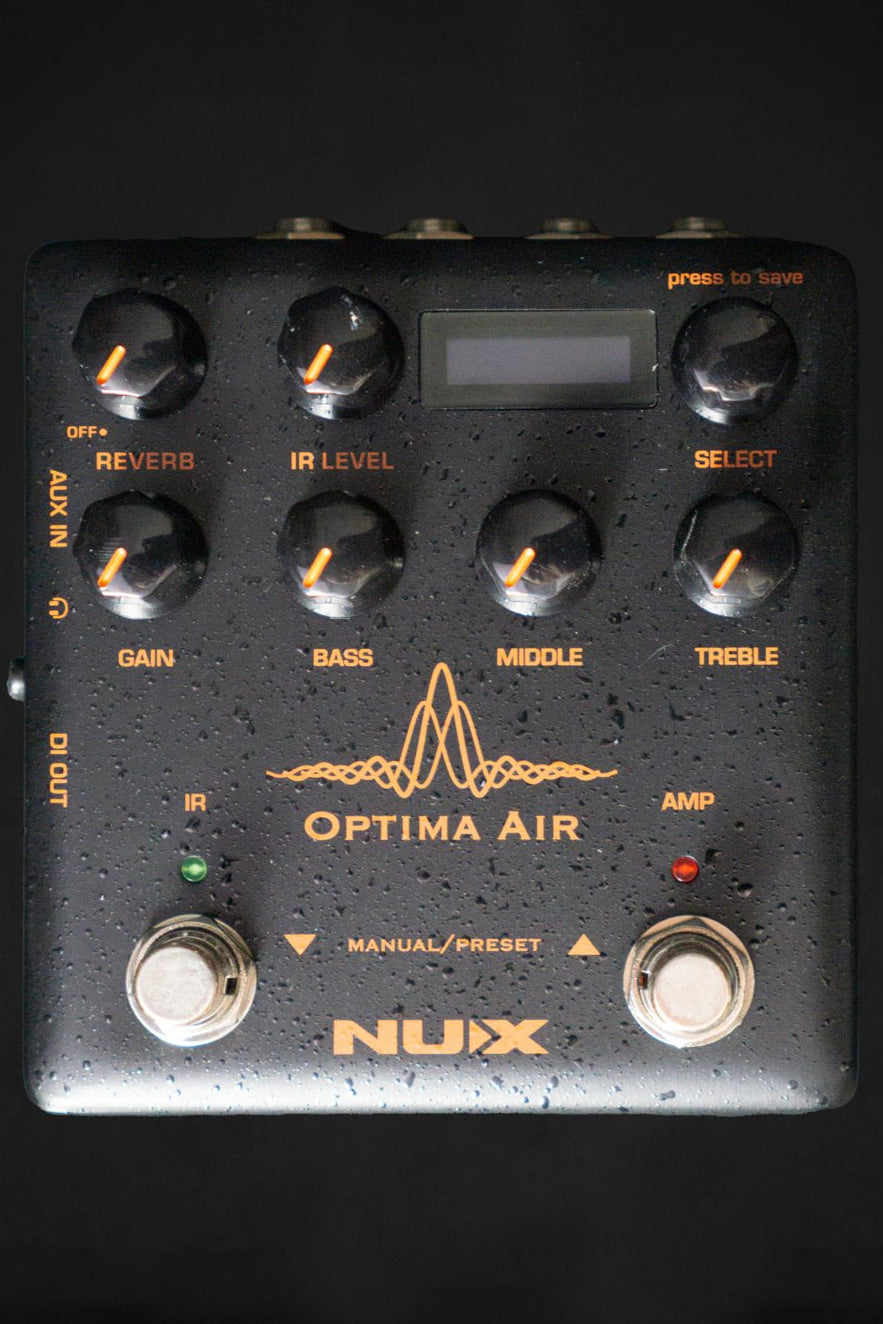

  • Reverb: One Knob Reverb effect control. It adjusts the Dry/Wet and Decay parameters. Or you can turn it OFF by tweaking to 0
  • IR Level: Adjusts the simulated signal (Impulse Response file) LEVEL
  • Select (Push to Save): In manual mode, you can choose the IR file. And you can save your customized preset by pushing the knob
  • Gain: Adjusts the signal input Gain level
  • 3-Band EQ:
  • Bass: Adjusts the low frequency level
  • Middle: Adjusts the middle frequency level
  • Treble: Adjusts the high frequency level
  • IR Footswitch:
  • Manual Mode: Engage/disengage the selected IR file. Acoustic guitar simulation ON/OFF
  • Preset Mode: Bank DOWN
  • Also, if you are editing a preset, you can push the IR footswitch to exit without saving
  • AMP Footswitch:
  • Manual Mode: Activates the pre-amp section. When you engage the AMP, you can use the Gain and the 3-band EQ
  • Preset Mode: Bank UP
  • Also, If you are editing a preset, while you changing the preset name you can push the AMP footswitch and move the cursor to the next selection area to choose a letter, number or symbol

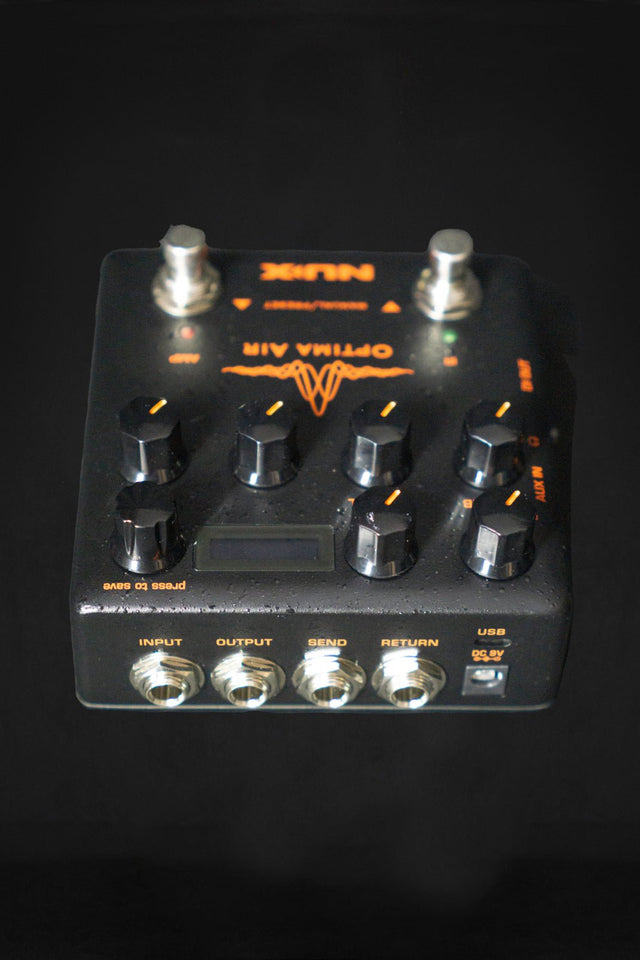

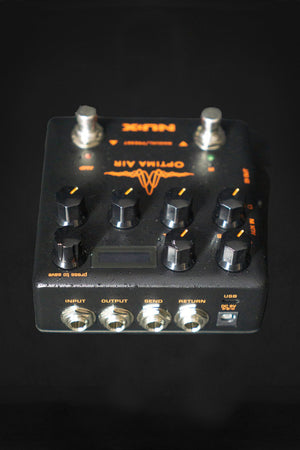

  • Input: 6.35mm (1/4-inch) jack input
  • Output: 6.35mm (1/4-inch) jack output
  • Send/Return: 6.35mm (1/4-inch) effect loop inputs
  • Micro B USB Port: You can connect the pedal to your computer to use the Optima Air software to create, edit and save your presets. And update the pedal when a new firmware released.
  • Power Input: 9V Negative TIP power adapter input
  • 3.5mm (1/8-inch) Auxiliary Input: You can connect music player to play along with music
  • 3.5mm (1/8-inch) Headphones Output: For silent practicing or recording

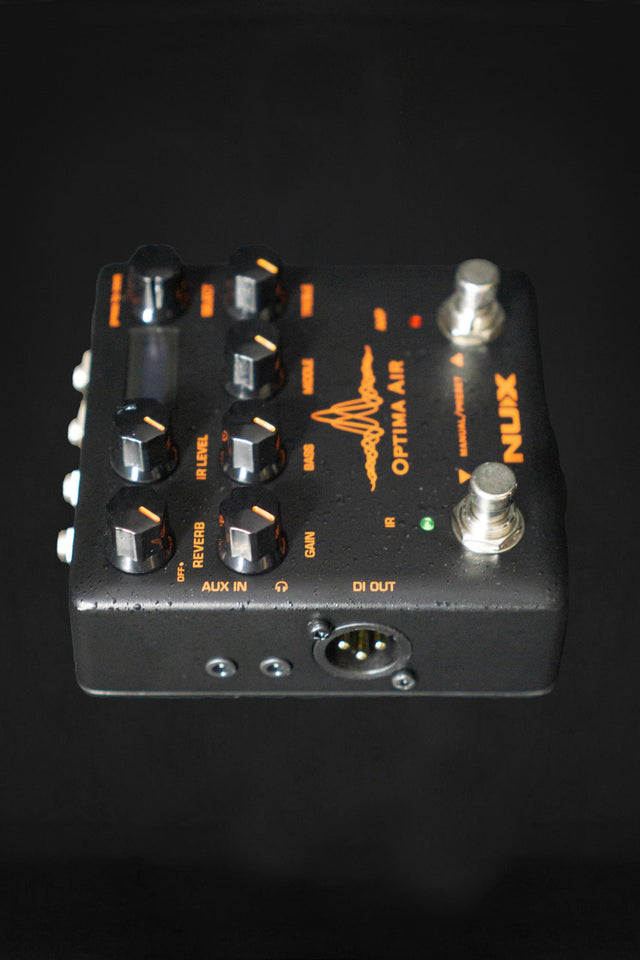

  • XLR DI Output: For direct connection to mixer (or PA system)

  • 24-bit, 48-kHz Sampling Quality
  • Acoustic Guitar Impulse Response and Pre-Amp controls
  • 15 built-in acoustic guitar profiles with IR level control
  • 9 Preset Slots
  • Reverb effect
  • Gain, Bass, Middle and Treble controls
  • 6.35mm (1/4-inch) Send/Return, effects loop
  • 3.5mm (1/8-inch) Auxiliary input
  • 3.5mm (1/8-inch) Headphones input
  • XLR DI Out
  • Micro B USB Port for USB Audio Stream and Edit Software
  • £100 value added setup included

    Guitars are shipped between 1-2 weeks from purchase.

    All guitars are first setup to customers requirements prior to shipping.

    All guitars are supplied with a full setup worksheet with their instruments measurments and workshop checklist.

    The highest level of care is taken with every setup prior to dispach and our quality control means that every guitar shipped will be perfect!
